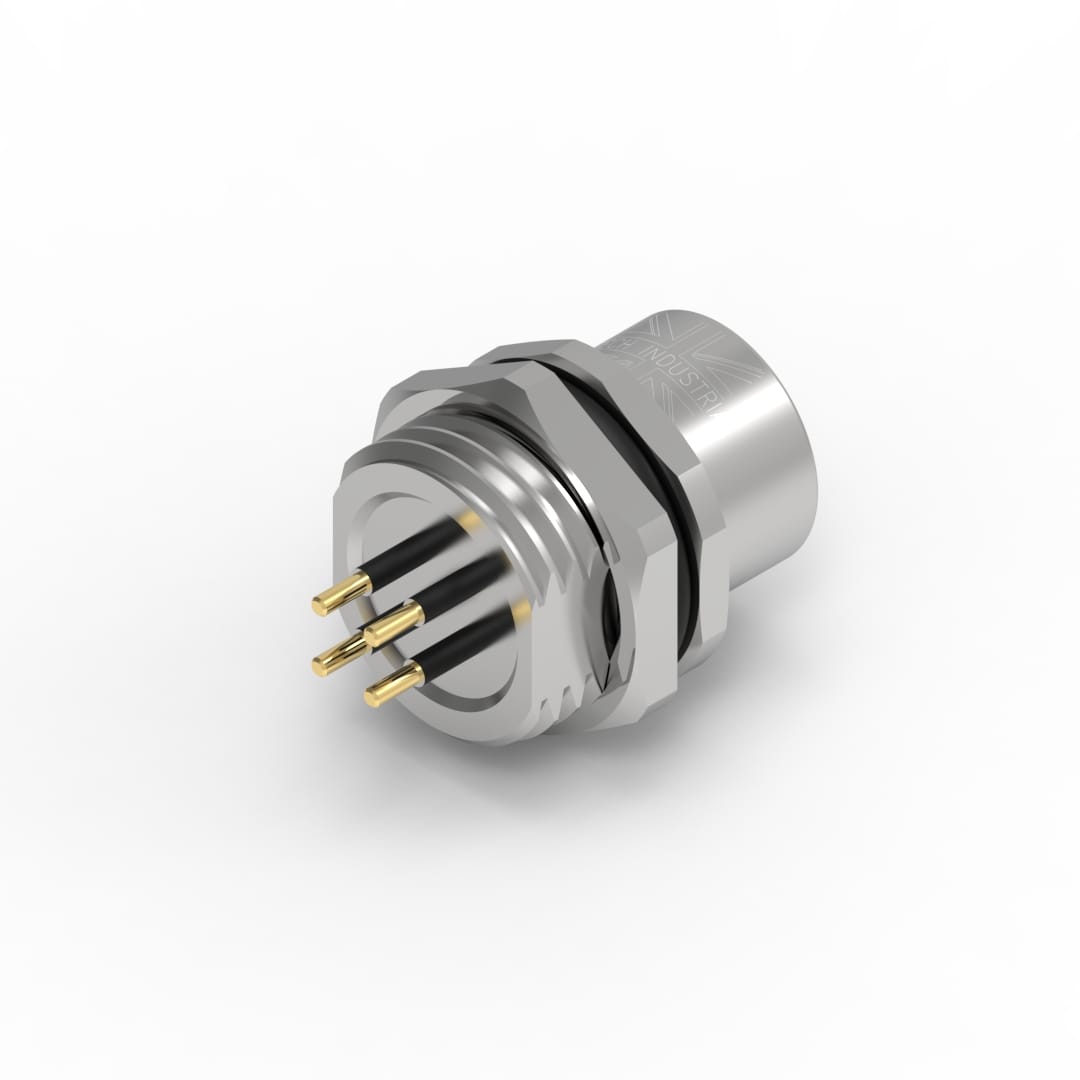

DTECH® M12 Front Mount Female 4 Pin D-Code (PCB / Threaded M16*1.5)

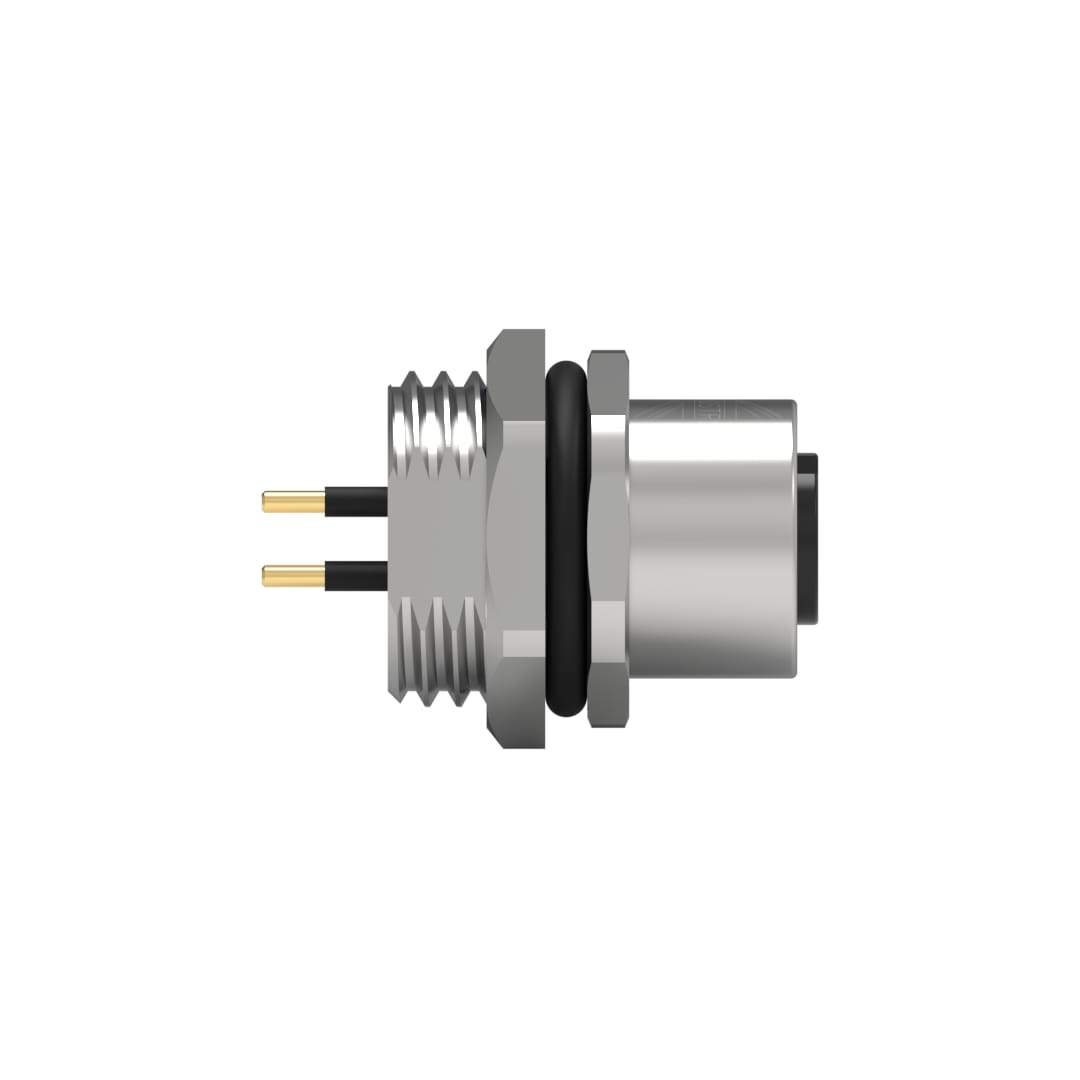

DTECH® M12 Front Mount Female 4 Pin D-Code (PCB / Threaded M16*1.5) - Image 2

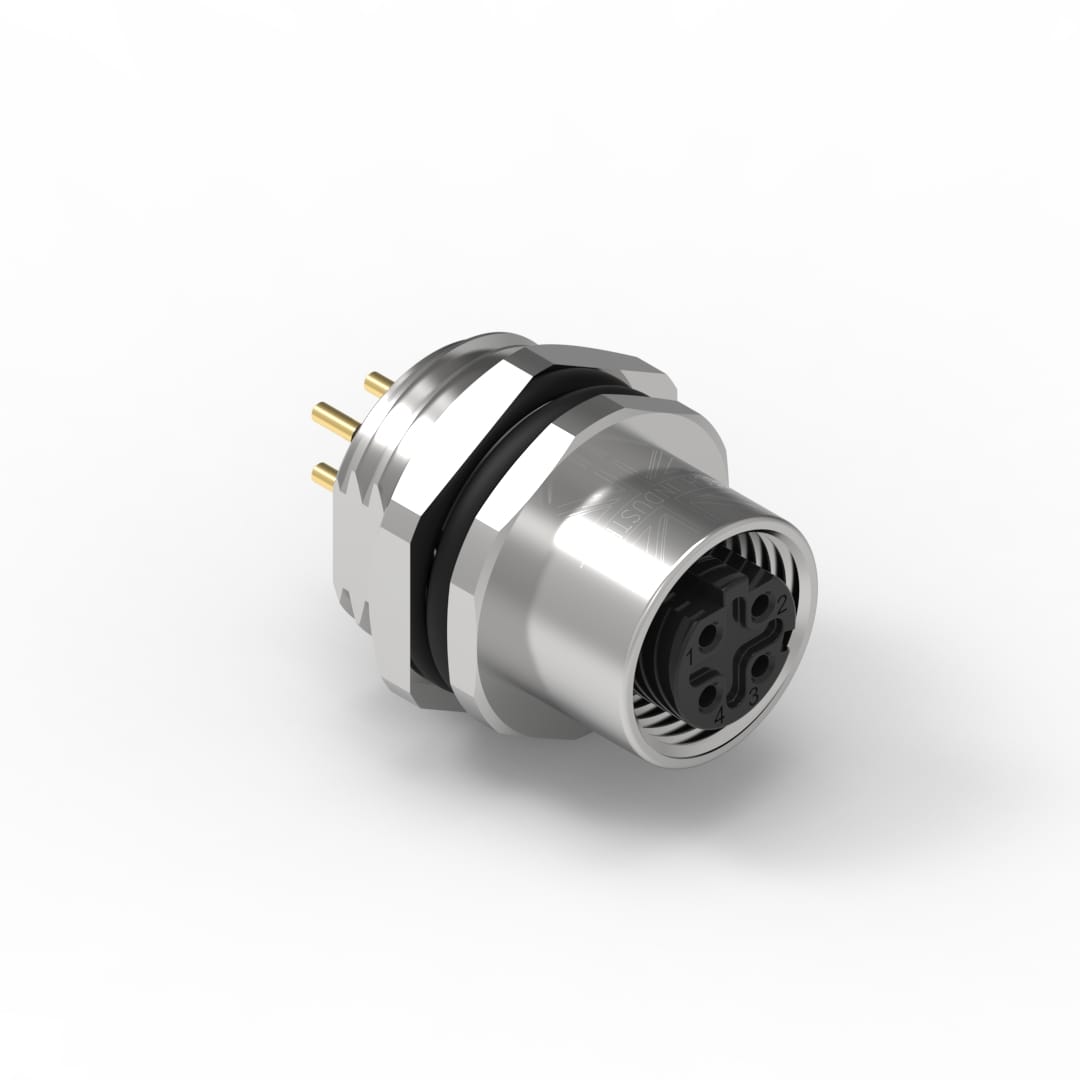

DTECH® M12 Front Mount Female 4 Pin D-Code (PCB / Threaded M16*1.5) - Image 3

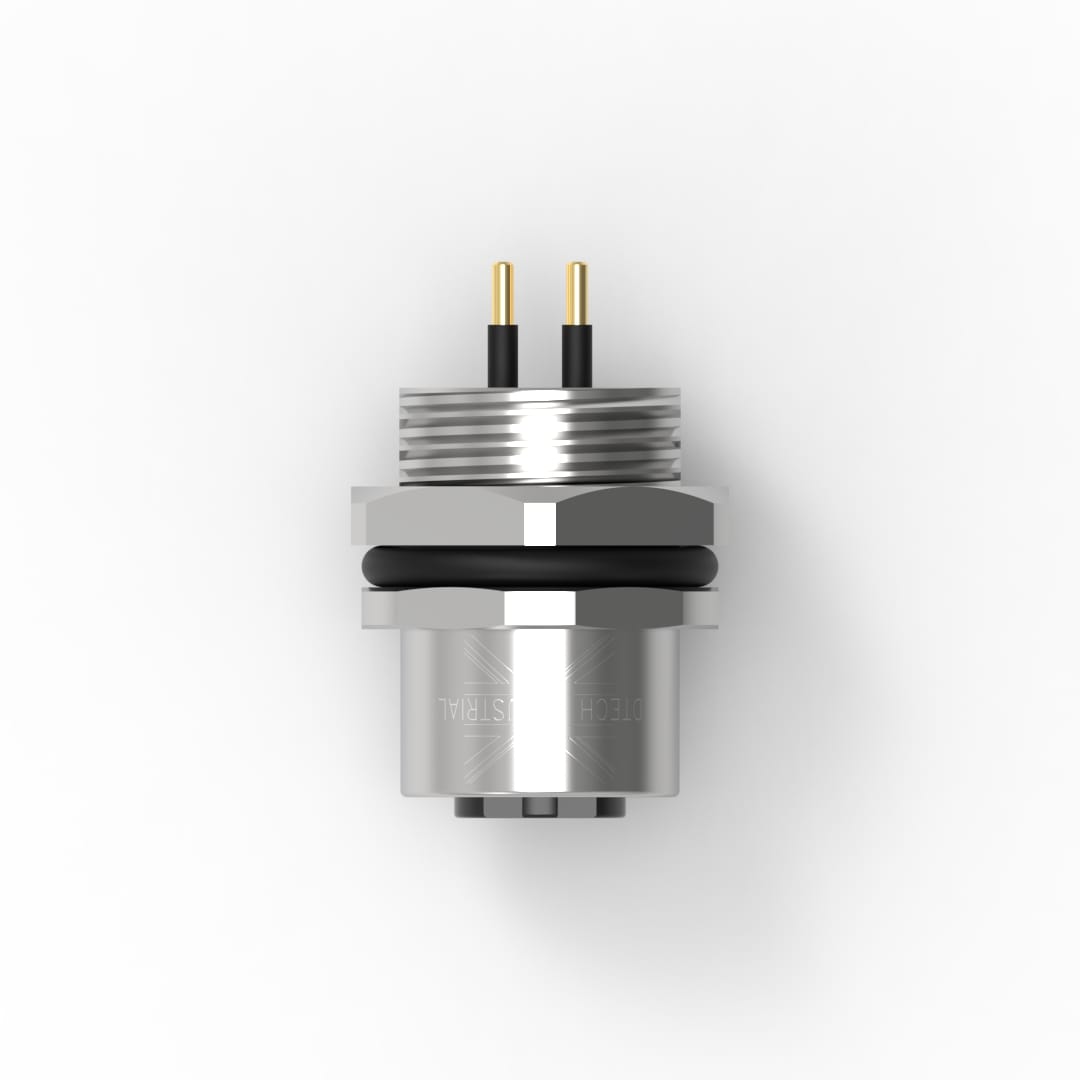

DTECH® M12 Front Mount Female 4 Pin D-Code (PCB / Threaded M16*1.5) - Image 4

DTECH® M12 Front Mount Female 4 Pin D-Code (PCB / Threaded M16*1.5)

MPN IND-M12D-FFMP Category Features , ,

Original price was: £4.89.Current price is: £4.89. Ex. Vat

Fast UK Delivery

Free delivery on orders available

Secure Checkout

SSL protected gateway

>30YR Warranty

Performance guaranteed

  • Certificate of Conformance
  • Data Sheet
Product Overview
  • DTECH® M12 4-pin D-Code female frount mount socket with PCB termination, engineered for industrial Ethernet panel-mount connectivity.
  • M16*1.5 threaded mounting provides secure front-panel installation in control cabinets and junction boxes.
  • IP67 rated sealing provides protection from dust ingress and temporary water immersion.
  • D-Code 4-pin layout supports Gigabit Ethernet, compatible with PROFINET and EtherCAT protocols across all IEC 61076-2-101 compliant devices.
  • PCB Terminations allows direct board mounting ensures secure, low-resistance connections in high-vibration applications.
Technical Product Information
CouplingThreadedShell materialCopper nickel plated
TerminationPCBContact materialCopper Gold plated
CodingDInsert materialPA66+GF UL94 black
Pollution degree3SealingNBR
Temperature range-40°C to +80°CProtection GradeIP67
Mating cycles≥500Rated voltage250V AC/DC
Rated current4AContact resistance≤5 mΩ
Insulation resistance≥100 MΩRoHS ConformityYes
CE MarkingYes
