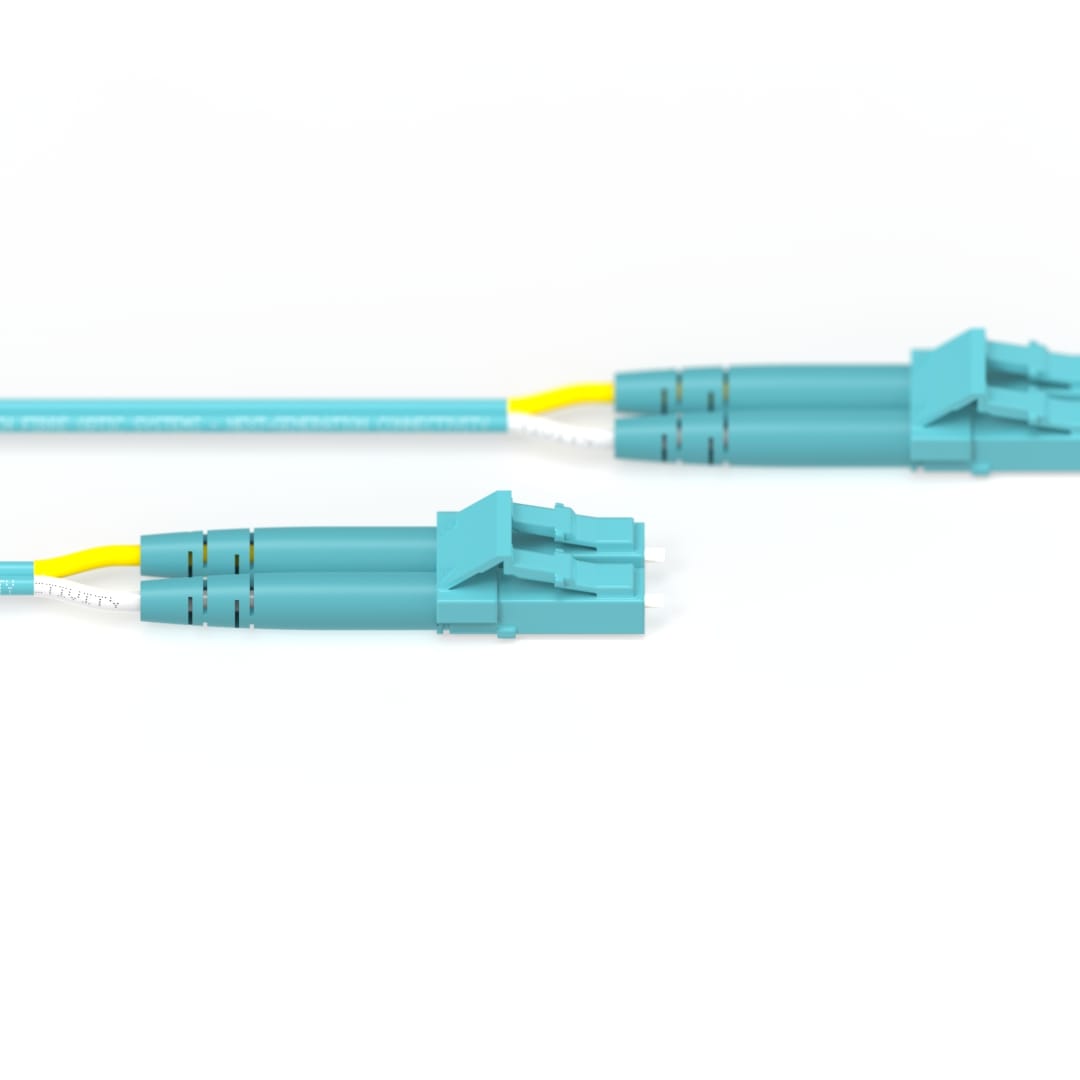

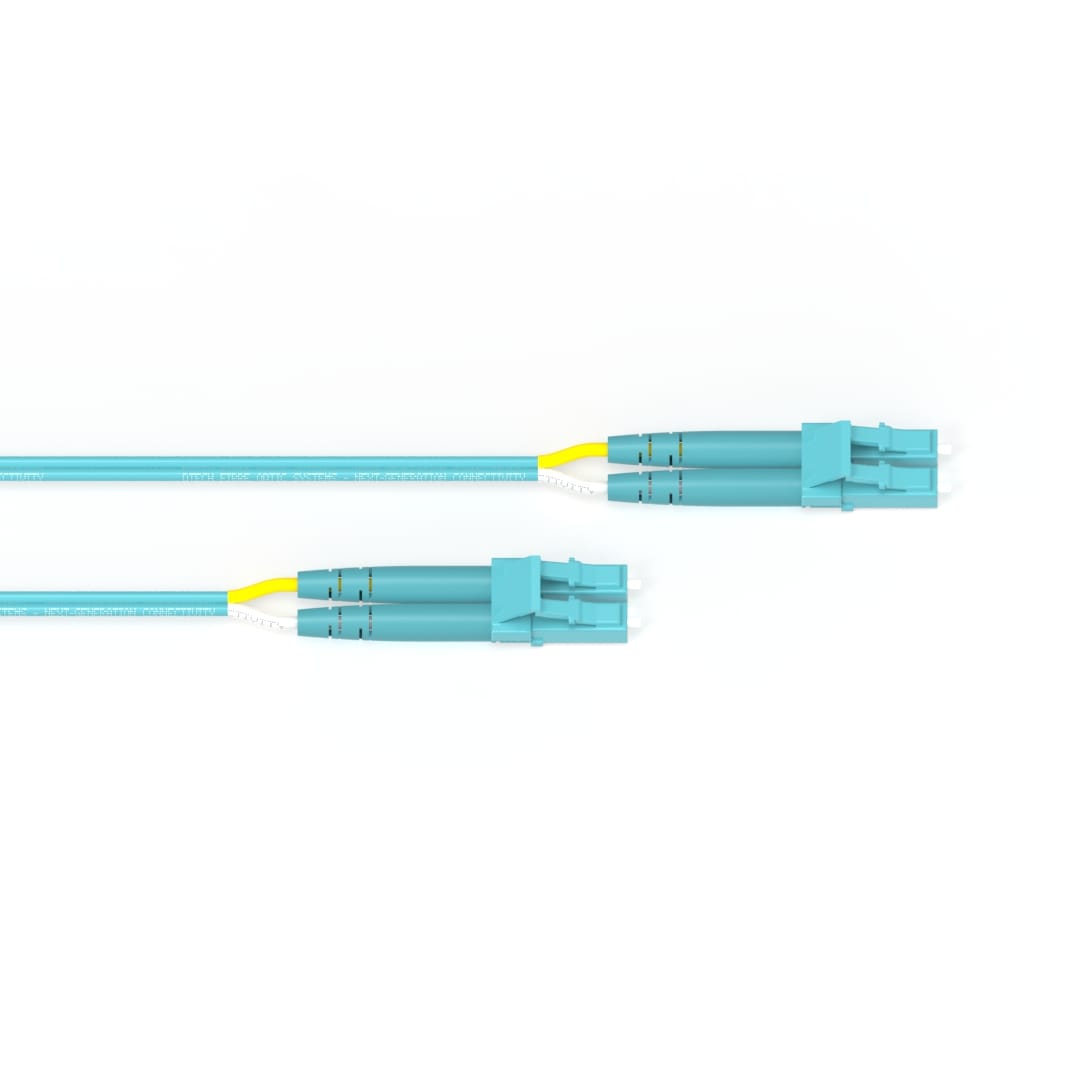

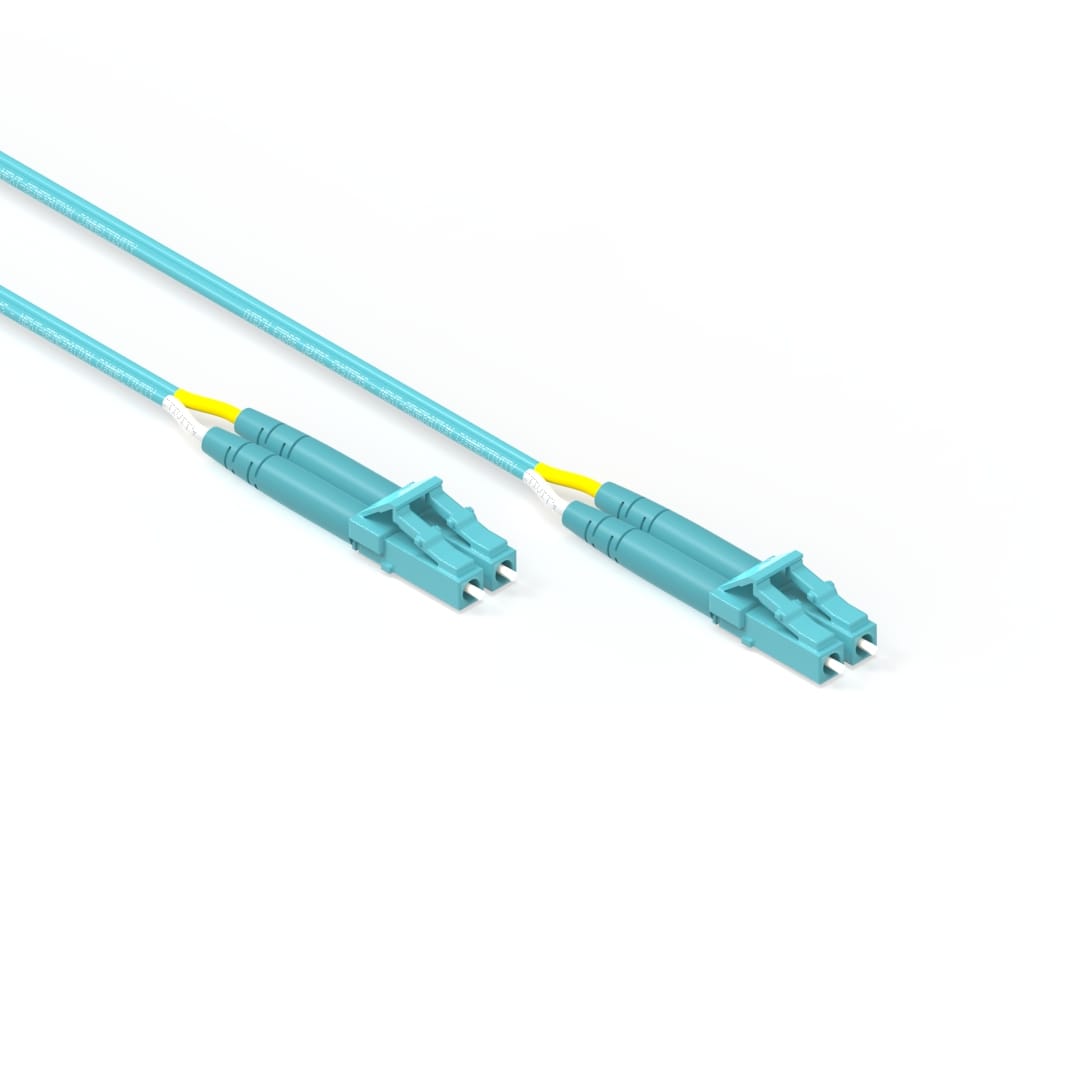

DTECH® OM3 LC UPC to LC UPC Duplex 2mm LSZH Aqua 2M Patch Lead
DTECH® OM3 LC UPC to LC UPC Duplex 2mm LSZH Aqua 2M Patch Lead - Image 2

DTECH® OM3 LC UPC to LC UPC Duplex 2mm LSZH Aqua 2M Patch Lead

MPN OM3-LCULCU-DX-2 Category Features , ,

Original price was: £4.19.Current price is: £4.19. Ex. Vat

  • Fast UK Delivery
  • Secure Checkout
  • Warrantied Product Systems
  • Certificate of Conformance
  • Data Sheet
Product Overview
  • DTECH® LC UPC to LC UPC Duplex OM3 multimode fibre optic patch leads engineered for high-speed multimode networks.
  • Supports 10G, 40G and 100G Ethernet applications, delivering reliable high-bandwidth performances.
  • OM3 50/125µm bend-insensitive fibre allows tighter installation routing.
  • Precision ceramic ferrules ensure low insertion loss and high return loss.
  • LSZH (Low Smoke Zero Halogen) jacket reduces smoke and toxic emissions, making it ideal for indoor and high-density environments.
  • Factory terminated and 100% tested for performance and reliability, ensuring plug-and-play deployment for seamless connectivity.
Technical Product Information
Connector ALC UPC DuplexConnector BLC UPC Duplex
Fibre Count2 Fibre (Duplex)Fibre GradeBend Insensitive Multimode Fibre (BIMMF)
Fibre ModeOM3 (50/125µm)Wavelength850/1300nm
Jacket MaterialLSZHCable Diameter2.00mm
PolarityA to BCable TypeTight Buffered
Bend Radius20 / 10 x Diameter (Short / Long)Mating Durability1000 Times
Insertion Loss≤0.3dBReturn Loss≥30dB
Attenuation at 850nm3.5dB/kmAttenuation at 1300nm1.5dB/km
Operating Temperature-10 to 70°CColourAqua
RoHS ConformityYesCE MarkingYes
