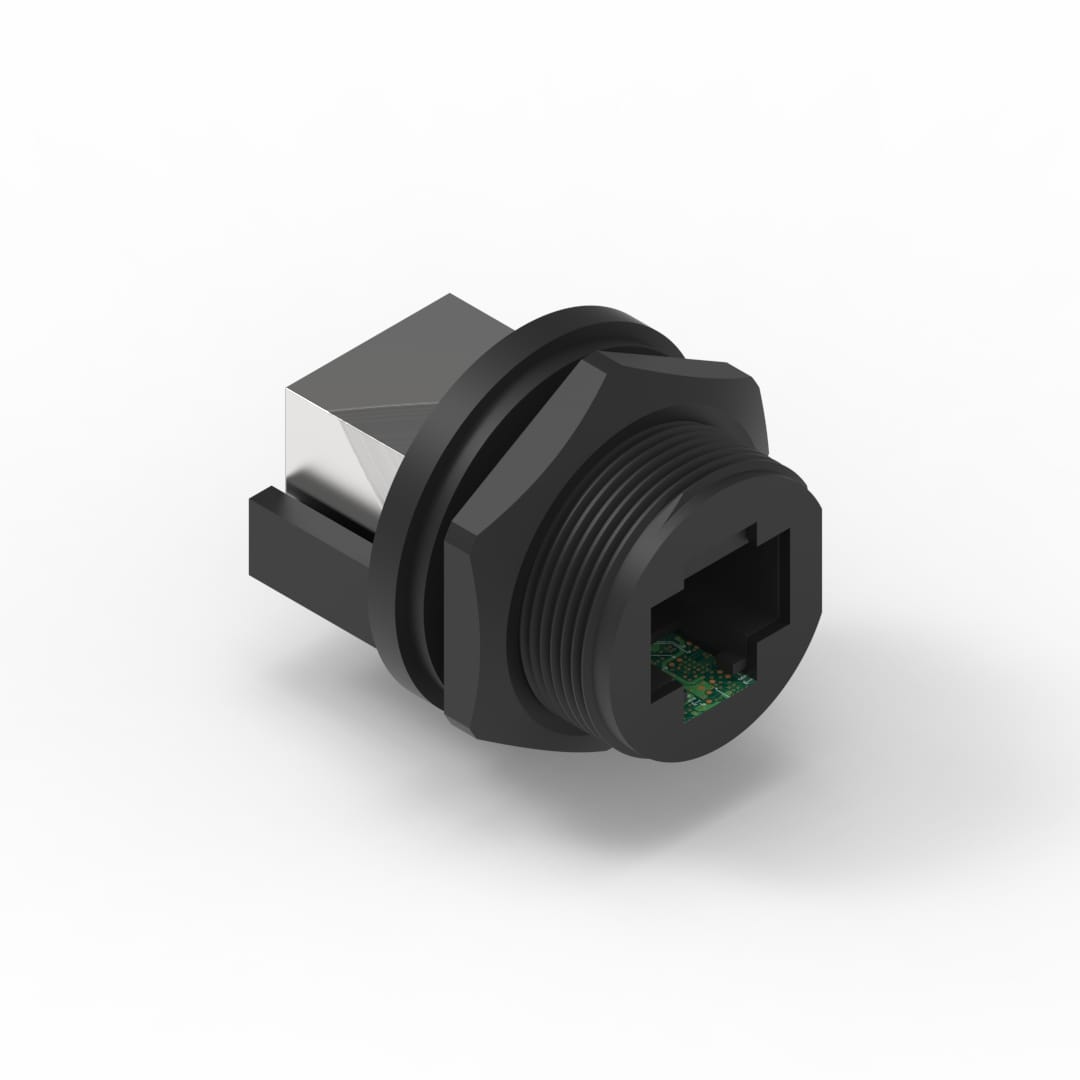

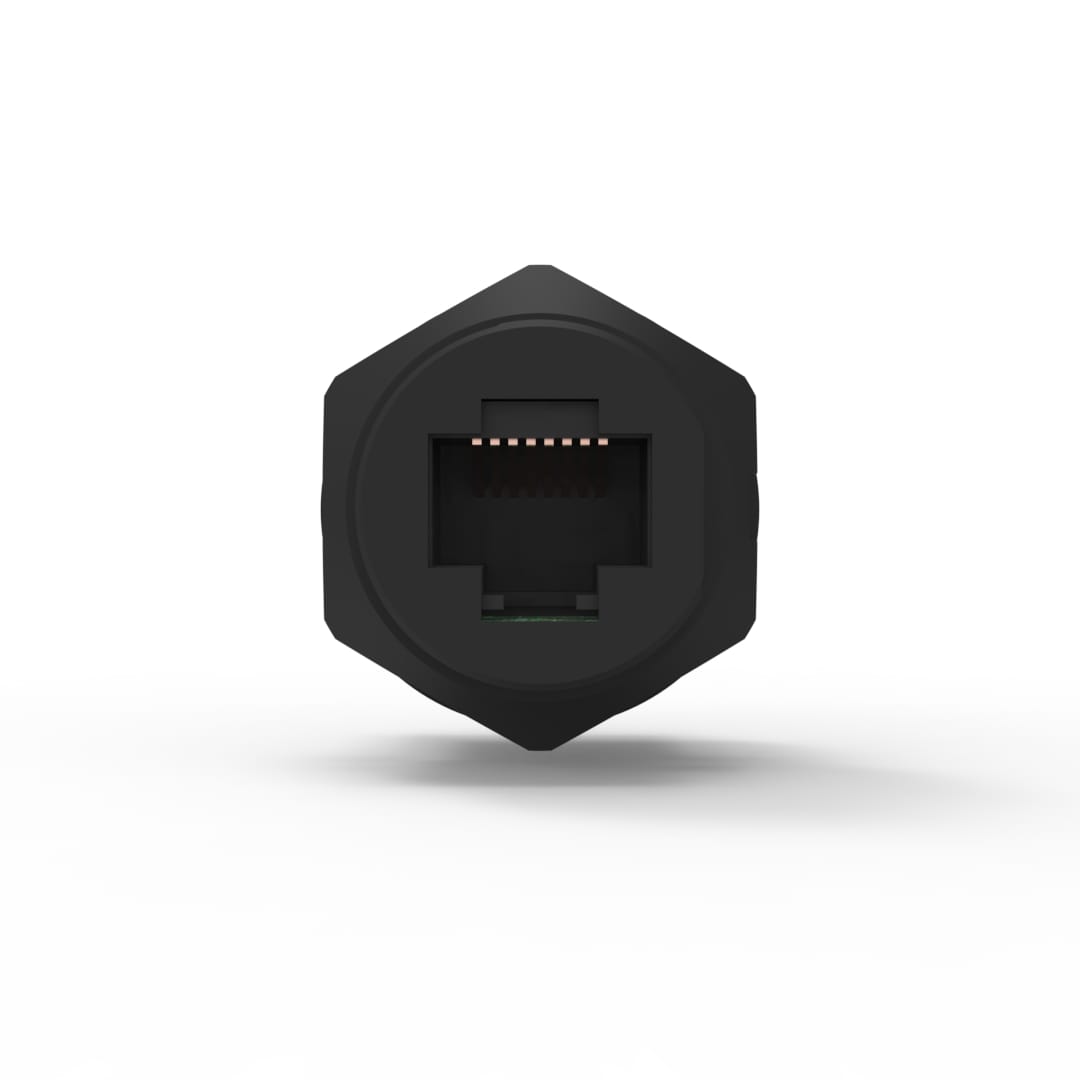

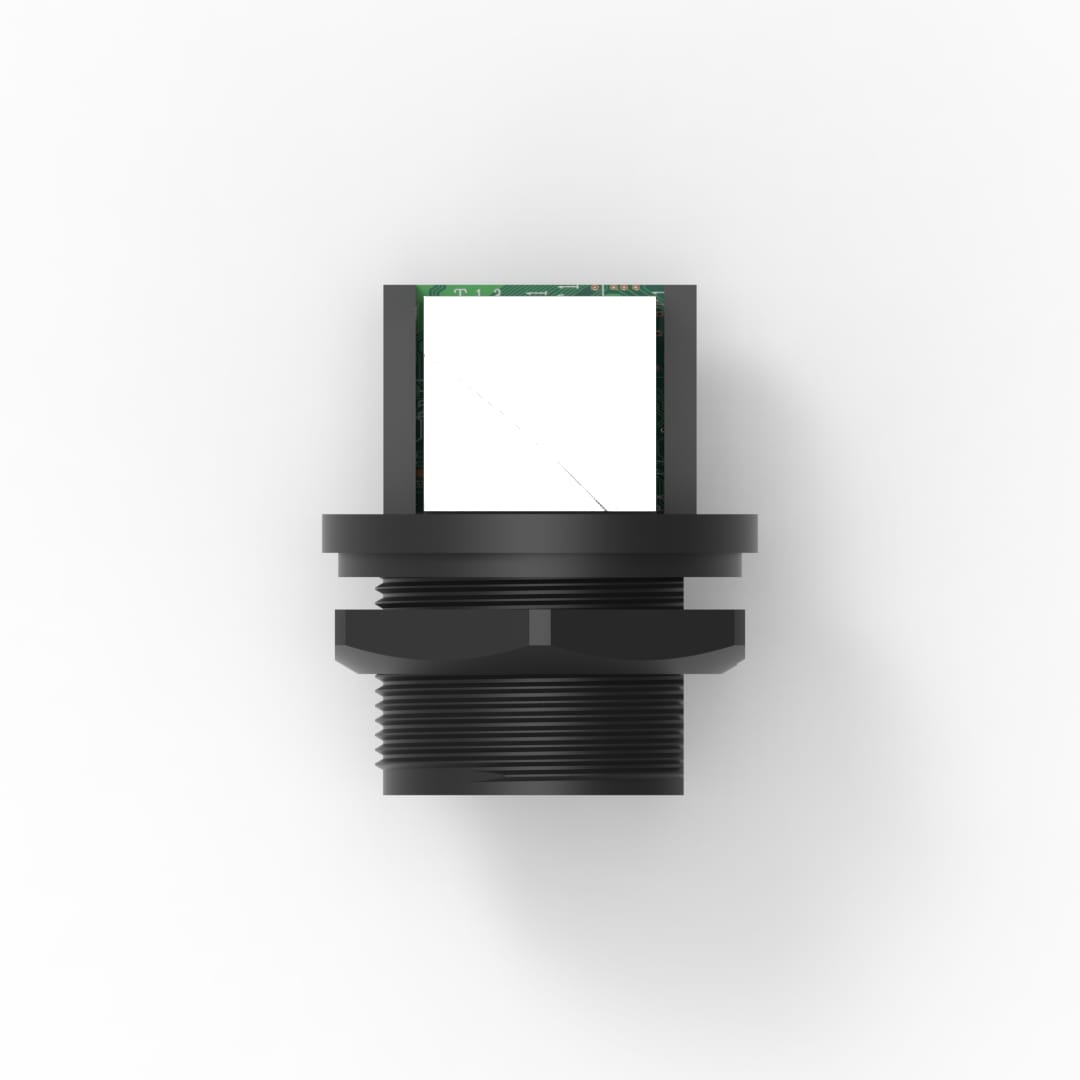

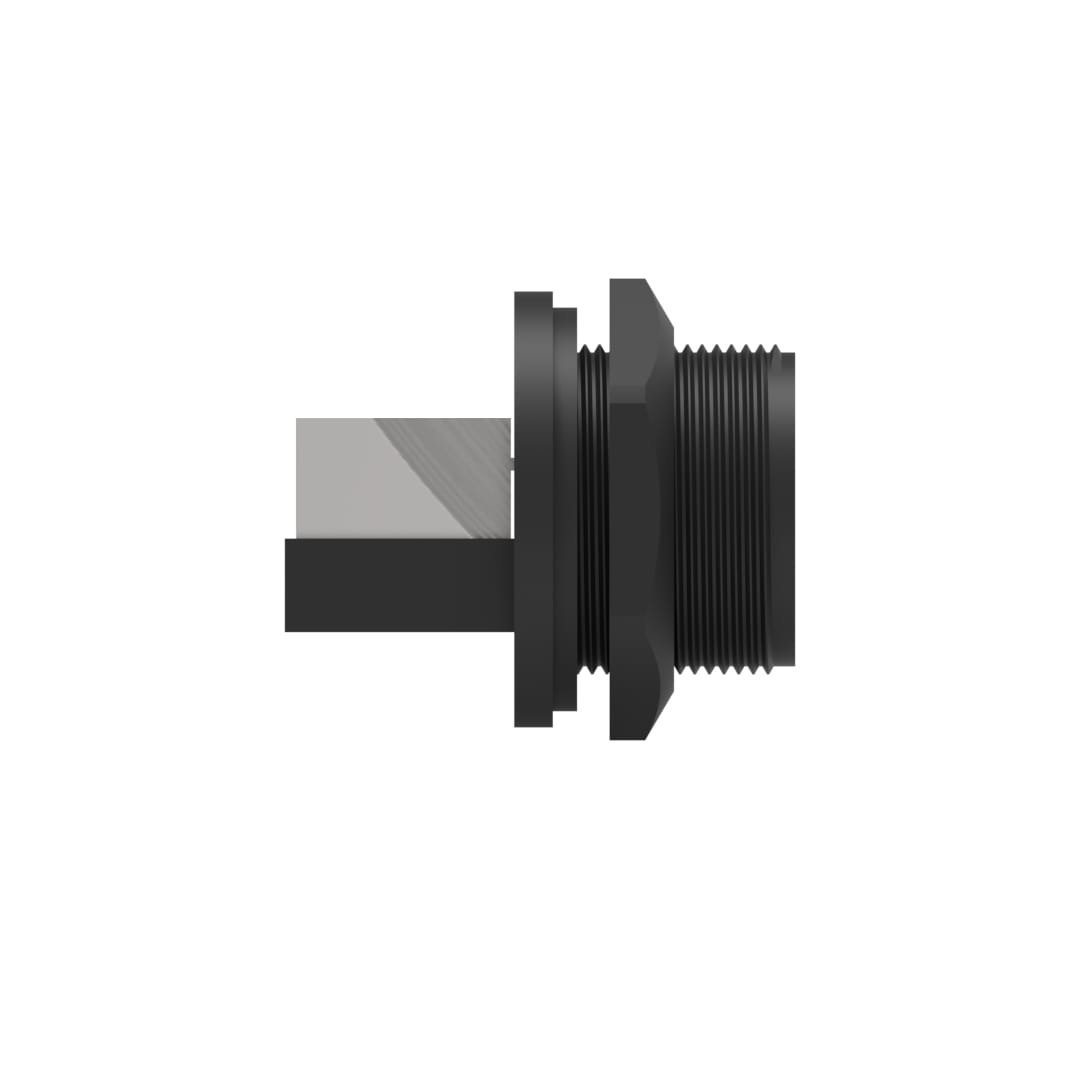

DTECH® RJ45 Connector Female to Female Straight, Panel Mount, Cat5e 8 Pin STP Shield 1 Port
DTECH® RJ45 Connector Female to Female Straight, Panel Mount, Cat5e 8 Pin STP Shield 1 Port - Image 2
DTECH® RJ45 Connector Female to Female Straight, Panel Mount, Cat5e 8 Pin STP Shield 1 Port - Image 3
DTECH® RJ45 Connector Female to Female Straight, Panel Mount, Cat5e 8 Pin STP Shield 1 Port - Image 4

DTECH® RJ45 Connector Female to Female Straight, Panel Mount, Cat5e 8 Pin STP Shield 1 Port

MPN IND-RJ45-FF-SBMT Category Features ,

Original price was: £8.95.Current price is: £8.95. Ex. Vat

Fast UK Delivery

Free delivery on orders available

Secure Checkout

SSL protected gateway

>30YR Warranty

Performance guaranteed

  • Certificate of Conformance
  • Data Sheet
Product Overview
  • DTECH® Cat 5e Shielded RJ45 female to female back mount threaded adaptor, engineered for secure panel-mount Ethernet connectivity in industrial and network installations.
  • Threaded Coupling Mechanism ensures a fast, secure and vibration-resistant connection without tools.
  • Rear-panel back mount design enables clean front-face installation in enclosures, patch panels and junction boxes.
  • Compatible with standard RJ45 patch leads and cable assemblies, allowing flexible integration into existing industrial Ethernet infrastructure.
  • Rugged construction withstands mechanical stress and repeated mating cycles in demanding industrial environments.
Technical Product Information
CouplingThreadedThread size13/16"-28UNS
Applicable temperature-25°C to +80°CLevel of pollution3
Protection gradeIP67Durability≥500
Rated voltage24V AC/DCRated current1.2A
Conductor impedance≤20 mΩInsulation impedance≥100 MΩ
Quality standardsIPC-A-620High voltage testDC 300V / 0.01S
RoHS ConformityYesCE MarkingYes
