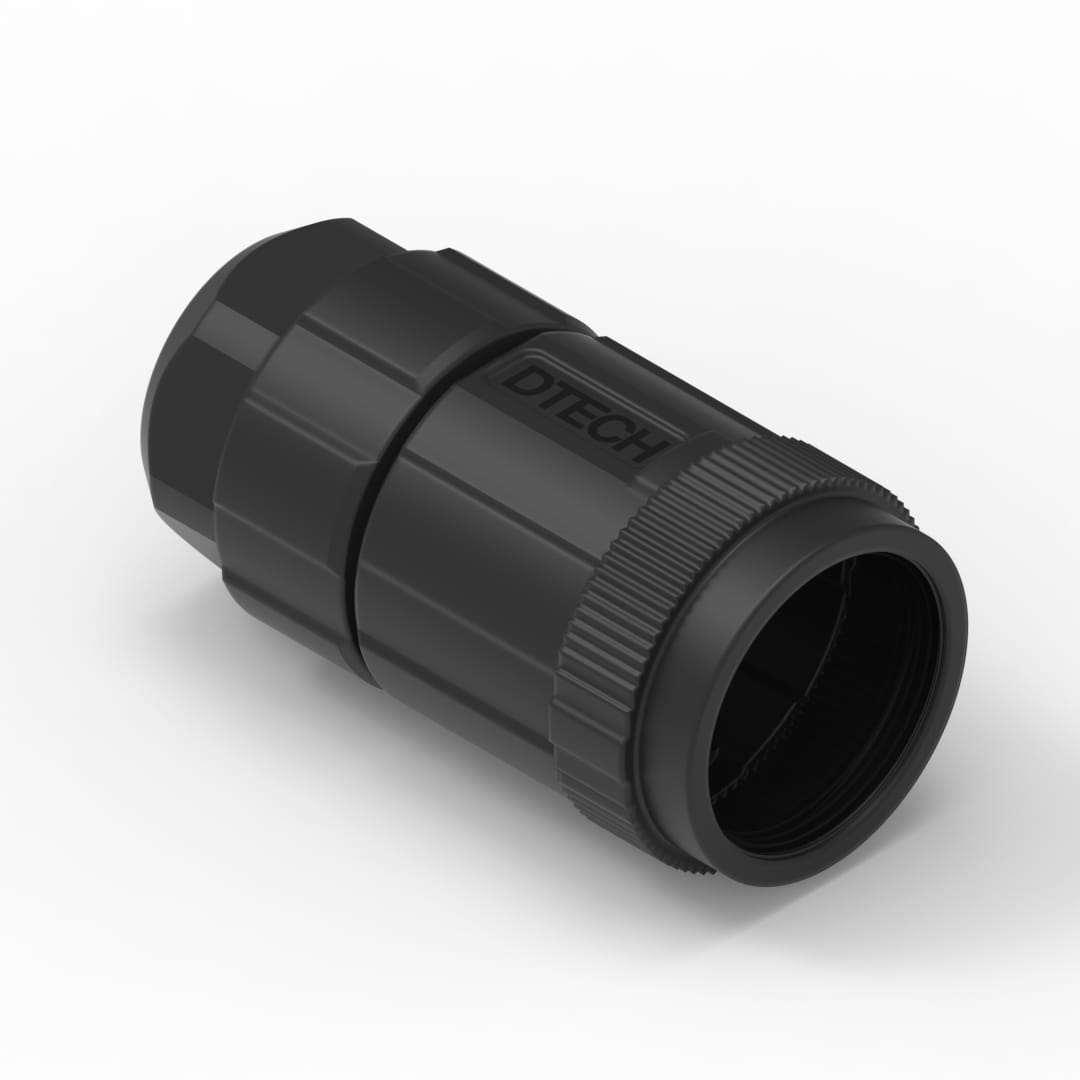

DTECH® Weatherproof Loose Housing for ≤8.0mm Cable (Threaded)

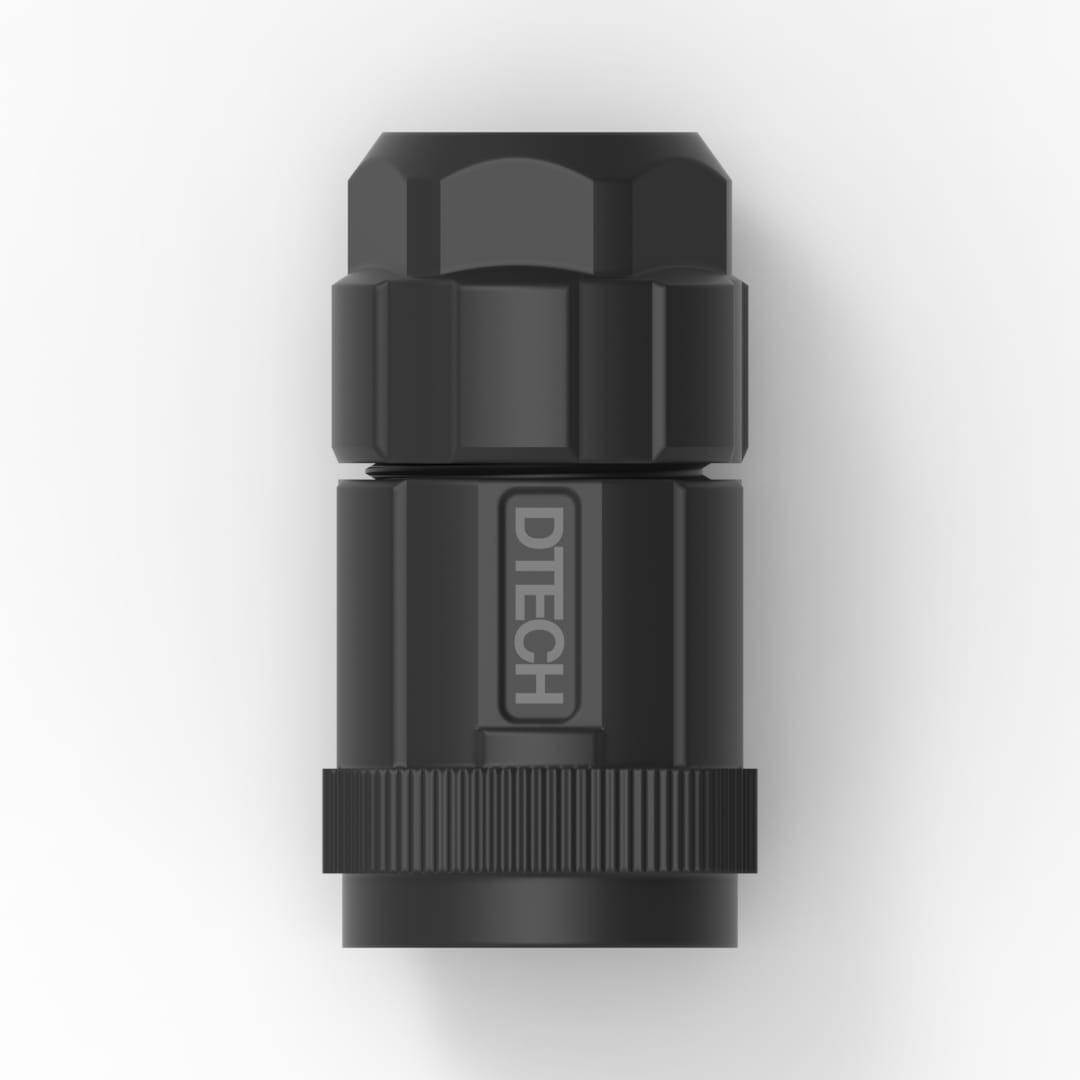

DTECH® Weatherproof Loose Housing for ≤8.0mm Cable (Threaded) - Image 2

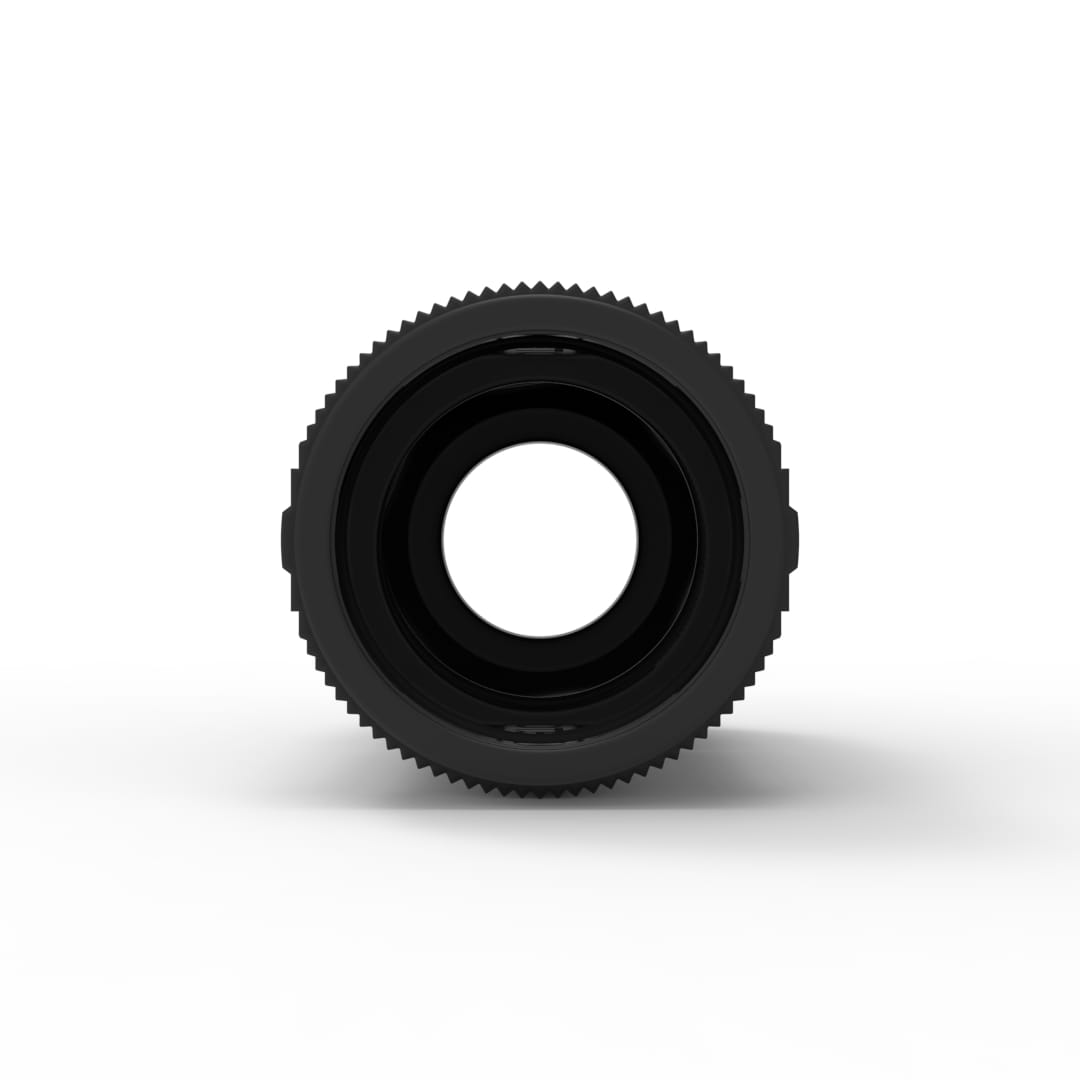

DTECH® Weatherproof Loose Housing for ≤8.0mm Cable (Threaded) - Image 3

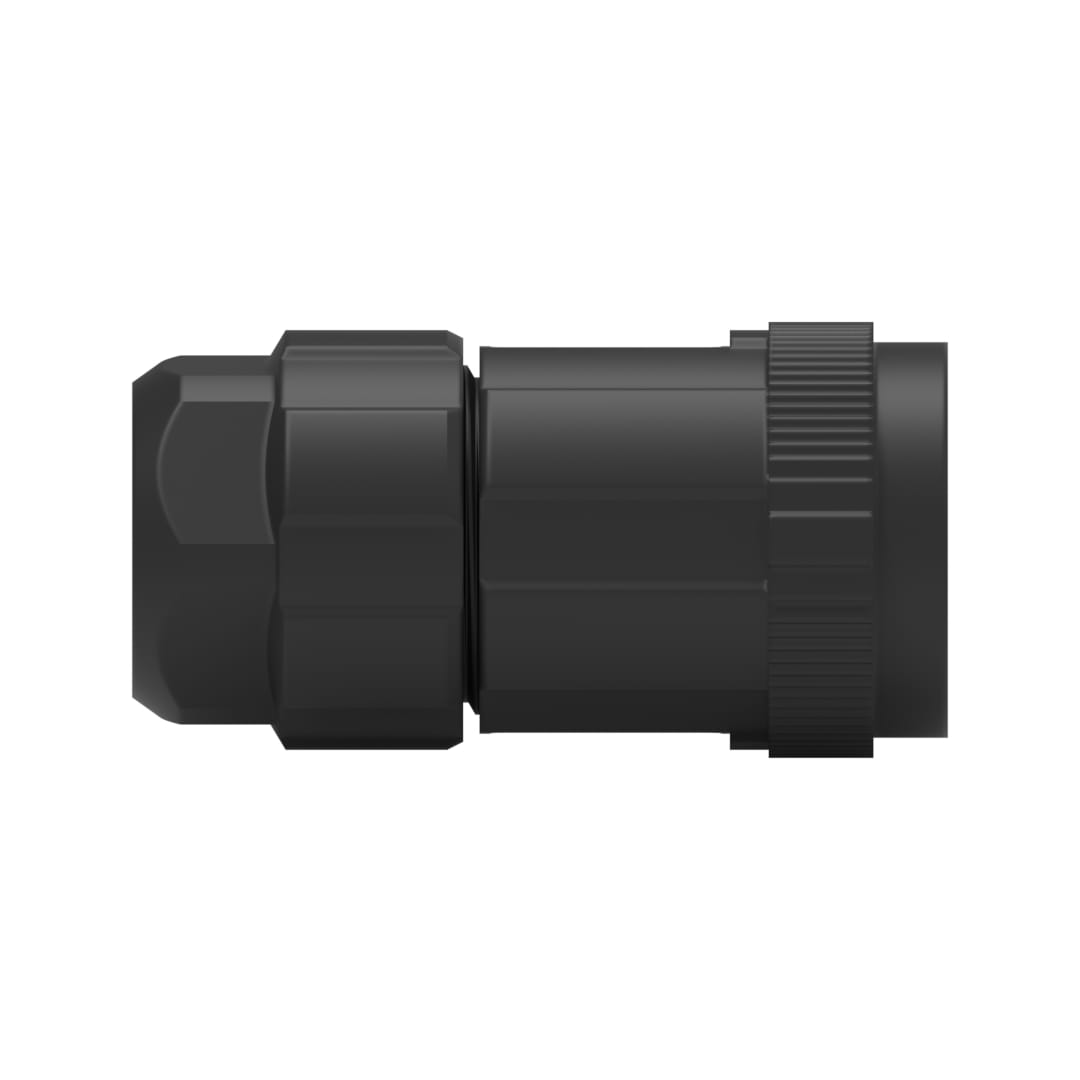

DTECH® Weatherproof Loose Housing for ≤8.0mm Cable (Threaded) - Image 4

DTECH® Weatherproof Loose Housing for ≤8.0mm Cable (Threaded)

MPN IND-8MM-PLUG Category Features ,

Original price was: £2.29.Current price is: £2.29. Ex. Vat

Fast UK Delivery

Free delivery on orders available

Secure Checkout

SSL protected gateway

>30YR Warranty

Performance guaranteed

  • Certificate of Conformance
  • Data Sheet
Product Overview
  • DTECH® 8.00mm plug housing, engineered for industrial Ethernet cable terminations.
  • IP67 rated sealing provides complete dust ingress protection and temporary water immersion resistance in harsh industrial and outdoor environments.
  • Robust form factor suits industrial installations in control cabinets, machinery and outdoor enclosures.
  • 8.0mm cable entry accommodates standard industrial Ethernet cable outer diameters.
  • Rugged construction withstands mechanical stress and repeated mating cycles in demanding industrial environments.
  • Compatible with front panel mounts with a thread size of 13/16″-28UNS.
Technical Product Information
Protection GradeIP67Thread size13/16"-28UNS
Insulation resistance≥500MΩ at DC500VWithstand voltage≥AC 1000V / 1 minute
Salt spray corrosion48 hoursPOE60W / 2A
Cable outlet diameter8.0mm MaxRoHS ConformityYes
CE MarkingYes
