Marine Grade
Rugged PUR

DTECH® Cat 6a S/FTP OFC Marine Grade PUR Teal

DTECH® Cat 6a S/FTP marine-grade cable with braided screen, foiled pairs and a durable PUR jacket. Engineered for dependable high-speed Ethernet across marine, factory-floor and machine-building installations in harsh, noisy environments.

MPN

IND-C6AMRN-PUR-SF-TL

Category

6a

Shielding

S/FTP

Jacket Material

PUR (Polyurethane)

Bending Radius

4 / 8 x Diameter (Fixed / Flexing)

Environment

Harsh Environments

Use Cases

Marine, Harsh Environments, Industrial Networks

KEY FEATURES

High Performance Connectivity

10GBASE-T10x Gigabit10GBASE-T10x GigabitMarineBuilt for Salt & SprayMarineBuilt for Salt & SprayPUROil & Abrasion ProofPUROil & Abrasion ProofFlameSelf-ExtinguishingFlameSelf-ExtinguishingOilPlant-Floor ReadyOilPlant-Floor ReadyShieldedInterference-FreeShieldedInterference-Free
Enquire
Contact Sales
Available for direct enquiry. Speak to our team for current supply, project pricing or a scheduled delivery.
Enquire Add to Project Enquiry
Contact Sales
Enquire
Contact Sales
  • SSL Gateway
  • Aliiance Member
  • Warrantied Systems
EXTENDED PRODUCT SPECIFICATIONS
  • DTECH Cat 6a S/FTP marine grade industrial bulk cable designed for reliable high-speed Ethernet in demanding marine, factory floor and machine building installations.

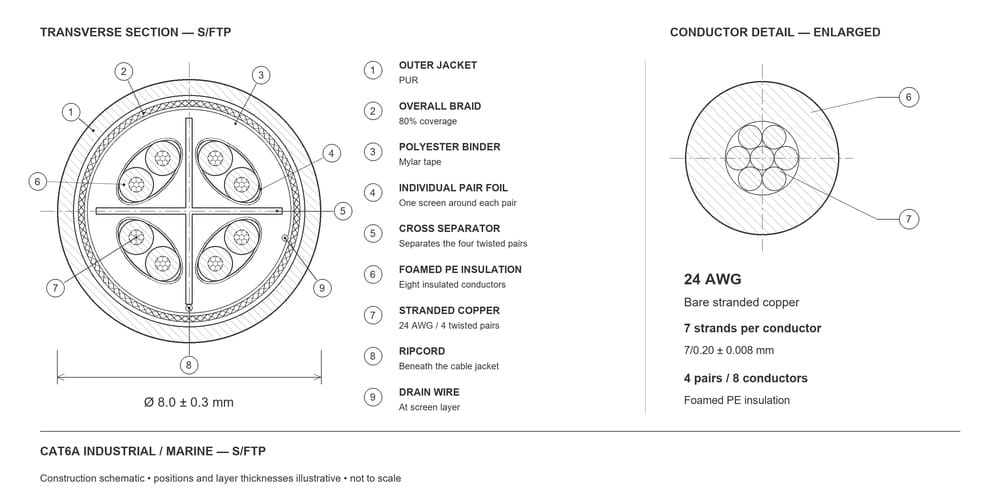

  • S/FTP construction combines an overall braided screen with individually aluminium foiled pairs for exceptional EMI protection in electrically noisy industrial environments.
  • Highly flexible stranded OFC copper with internal cross separator protects individual pairs under continuous mechanical stress, engineered for use in cable chains, robotic arms and continuously moving applications.
  • Oil, notch, and abrasion resistant PUR jacket conforming to EN 50363-10-2 and IEC 60811-2-1 provides superior flexibility and chemical resistance, suitable for exposure to oils, coolants and industrial fluids on the factory floor.
  • Marine grade construction provides superior crush resistance and resistance to salt spray and moisture ingress, suitable for exposed marine environments where splash and spray are present but full submersion is not required.
  • PoE++ compatible — the 26AWG stranded construction and superior thermal performance supports IEEE 802.3bt Type 4 (90W) power delivery without excessive heat build-up in bundled installations.
  • Supports high-speed data transmission of up to 10 Gbps at 500MHz in compliance with ISO/IEC 11801 Class Ea.
  • Well suited for high-flex cable chain and robotic deployments, IP cameras, IIoT edge devices, EtherCAT, EtherNet/IP, PROFINET and general-purpose industrial Ethernet applications in marine, factory automation and process control environments.
3RD PARTY COMPLIANCE
ISO/IEC Class EA

Rated Product.

DTECH® Warranty

5 YR Industrial Warranty.

CPR Eca

Euroclass 50575.

Category6AShielding TypeS/FTP
Jacket MaterialPURCore InsulationFoamed PE
Conductor MaterialBare Stranded CopperWire Gauge24AWG
Number of Conductors4 PairsCable Outer Diameter (mm)8.0 ± 0.3
Rated Bandwidth (MHz)500NVP (%)76
Data Transmission10GBase-T up to 90MPoE GradeType 4 (PoE++): Classes 7–8, delivering up to 90.0 W
EnvironmentHarsh EnvironmentsOperating Temperature (°C)-20 to 90
Installation Temp (°C)-20 to 60Max Pull Load (N)110
Min Bend Radius Installation8 × ODMin Bend Radius Installed4 × OD
Conductor Construction7/0.20 ± 0.008Insulation Thickness (mm)0.25
Insulation OD (mm)1.32 ± 0.05Binder MaterialMylar Tape
Shielding MaterialAl/Mylar TapeShielding Overlap25%
Braid MaterialAluminium Magnesium Alloy WireBraid Construction16/8/0.12 ± 0.008
Braid Coverage80%Jacket Thickness (mm)0.80
Spark Test for Insulation (DC)2.50kVConductor Resistance Max at 20°C87.6 ohm/km
Insulation Resistance100 MΩ·kmStandardISO 11801 Class Ea / ANSI/TIA-568.D
RoHS ConformityYesCE MarkingYes
Cable LengthCustomPackaging MethodReel
Technical Datasheet
Certificate of Conformity
Product Installation Guides
