Type K
105°C Rated

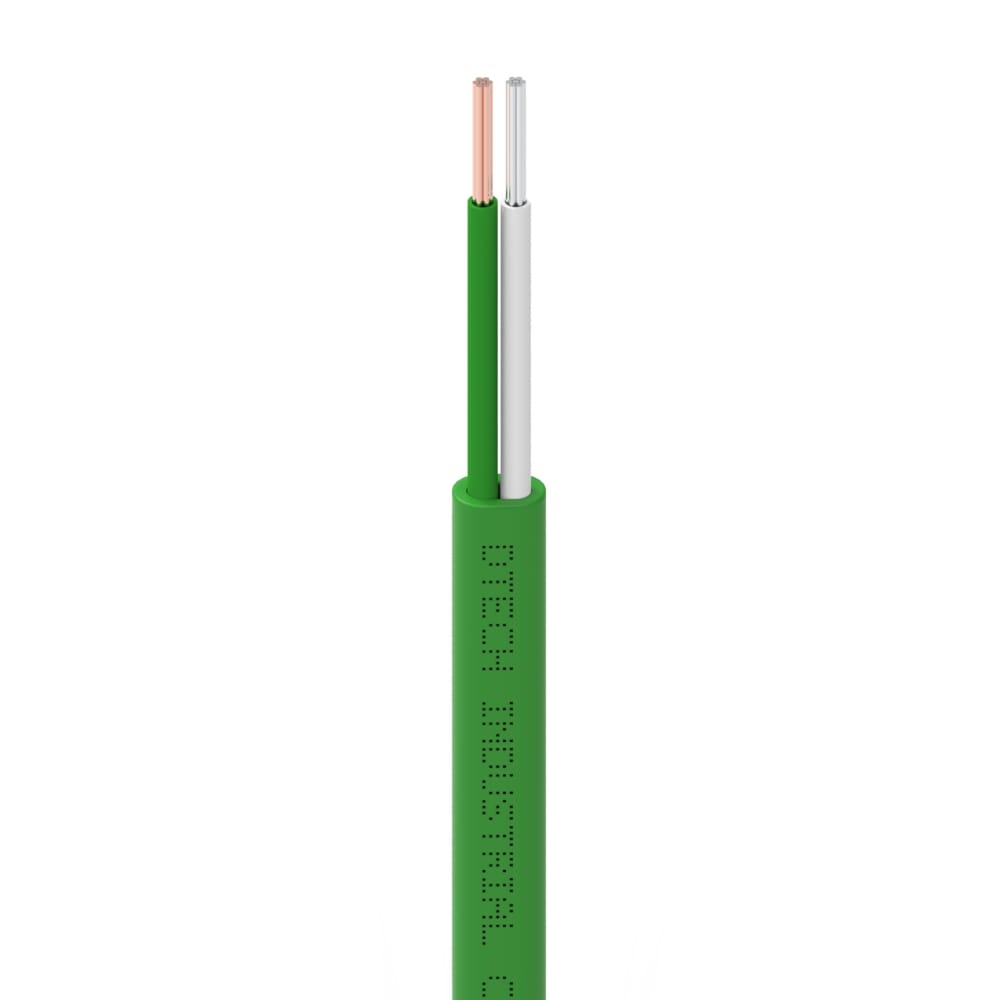

DTECH® 13/0.2 Type VX (KCB) Stranded Compensation Cable +105C PVC/PVC Green 100M

DTECH® Type VX (KCB) 13/0.2mm Type K thermocouple compensation cable, BS EN 60584 compliant and rated to +105°C. Matched Ni-Cr/Ni-Al alloys extend temperature signals accurately across industrial process-control installations, with dual PVC insulation.

MPN

KCB-1302-5YL-100

Number of Conductors

2

Negative Conductor Material

Copper / Nickel

Positive Conductor Material

Copper

Conductor Construction

13/0.2

Jacket Material

PVC

Use Cases

Process Control, Temperature Sensing

KEY FEATURES

High Performance Connectivity

OEMTrusted EquivalentOEMTrusted EquivalentIndustrialHeavy-Duty BuildIndustrialHeavy-Duty BuildStrandedFlexible & ForgivingStrandedFlexible & ForgivingPVCEasy to InstallPVCEasy to Install
Enquire
Contact Sales
Available for direct enquiry. Speak to our team for current supply, project pricing or a scheduled delivery.
Enquire Add to Project Enquiry
Contact Sales
Enquire
Contact Sales
  • SSL Gateway
  • Aliiance Member
  • Warrantied Systems
EXTENDED PRODUCT SPECIFICATIONS
  • DTECH® Type VX (KCB) 13/0.2mm stranded Type K thermocouple compensation cable with dual PVC/PVC insulation, BS EN 60584 compliant and rated to +105°C for accurate temperature signal extension in industrial process control.
  • Nickel-Chromium/Nickel-Aluminium conductor alloys are matched to Type K thermocouple output, accurately extending signals from measurement point to control instrument with minimal thermoelectric error.
  • Rated to +105°C continuous operating temperature, suitable for elevated ambient environments including industrial ovens, HVAC plant rooms, and process manufacturing applications.
  • Compliant with BS EN 60584 international thermocouple standards, ensuring accurate compensation across the full Type K operating range in certified temperature measurement systems.
  • Stranded 13/0.2mm conductor construction provides excellent flexibility for routing through conduit, cable management, and complex process automation panel installations.
  • Green (G/W) colour coding per IEC 60584-3 identification standards enables fast, accurate circuit identification in large-scale industrial temperature measurement infrastructure.
3RD PARTY COMPLIANCE
CE Marked

Conformity Europe.

RoHS Compliant

Compliant Product.

DTECH® Warranty

30 YR System Warranty.

CPR Eca

Euroclass 50575.

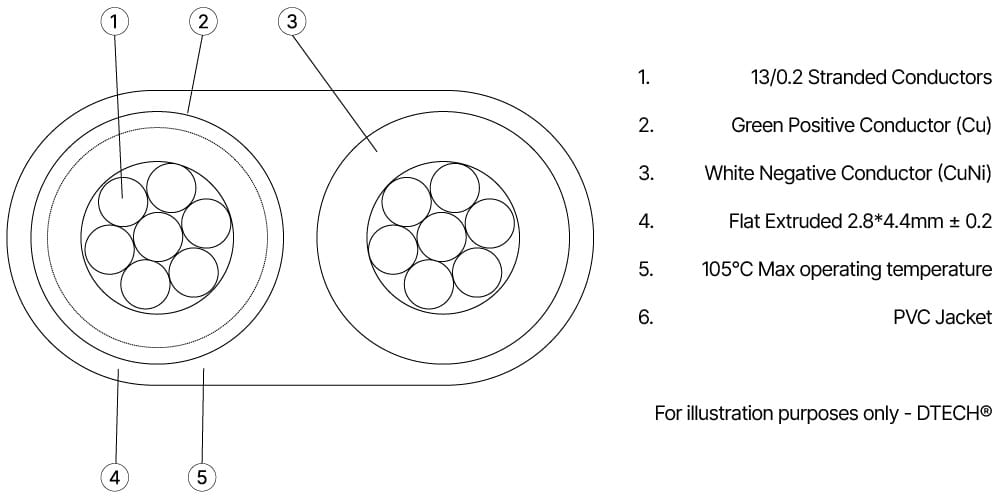

Number of Conductors2Conductor Size0.4mm
Conductor Construction13/0.2Positive Conductor MaterialCopper
Negative Conductor MaterialCopper / NickelInsulation MaterialPVC
Jacket MaterialPVCJacket OD (mm)2.8 ± 0.2 x 4.4 ± 0.2
ColourGreenTemperature Rating105°C
RoHS ConformityYesCE MarkingYes
Technical Datasheet
Certificate of Conformity
Product Installation Guides
