Cat6A — Augmented Category 6 — is the current recommended standard for new commercial structured cabling installations. Specified to 500MHz bandwidth and certified for 10 Gigabit Ethernet at the full 100-metre channel length, it removes the crosstalk-dependent distance limitation that makes standard Cat6 a variable proposition for 10G deployments. The incremental cost over Cat6 at installation time is modest relative to the cost of recabling a building later when bandwidth requirements increase.

This guide explains what Cat6A is, what distinguishes it from Cat6, where DTECH’s Cat6 and Cat6A sit relative to the standards, the shielding options available, and which DTECH Cat6A cable suits each installation type.

What Cat6A actually means

The “A” in Cat6A stands for Augmented — a formal designation defined in ANSI/TIA-568.2-D in 2009 and ISO/IEC 11801 Class EA. It is a distinct performance tier with significantly more stringent requirements than Cat6, particularly in the area of alien crosstalk — interference induced between adjacent cables in the same bundle. This is where standard Cat6 falls short for 10GBase-T at full channel length.

Cat6A doubles Cat6’s minimum bandwidth specification from 250MHz to 500MHz. More critically, it introduces mandatory alien crosstalk testing — PSANEXT and PSAACR-F — that Cat6 does not require. At the higher frequencies required for 10G transmission, standard Cat6 UTP in bundled installations generates significant alien crosstalk that limits reliable 10GBase-T to around 55 metres. Cat6A is specified and tested to manage this — either through shielded construction that blocks alien crosstalk at source, or through tighter unshielded construction with enhanced crosstalk rejection geometry.

The practical result: Cat6A supports 10GBase-T to the full 90-metre permanent link and 100-metre channel without any qualification about alien crosstalk environment. Where Cat6 for 10G requires post-installation testing to verify performance in the specific installation environment, Cat6A does not — the standard guarantees performance regardless of installation density.

Where DTECH Cat6 and Cat6A sit relative to the standards

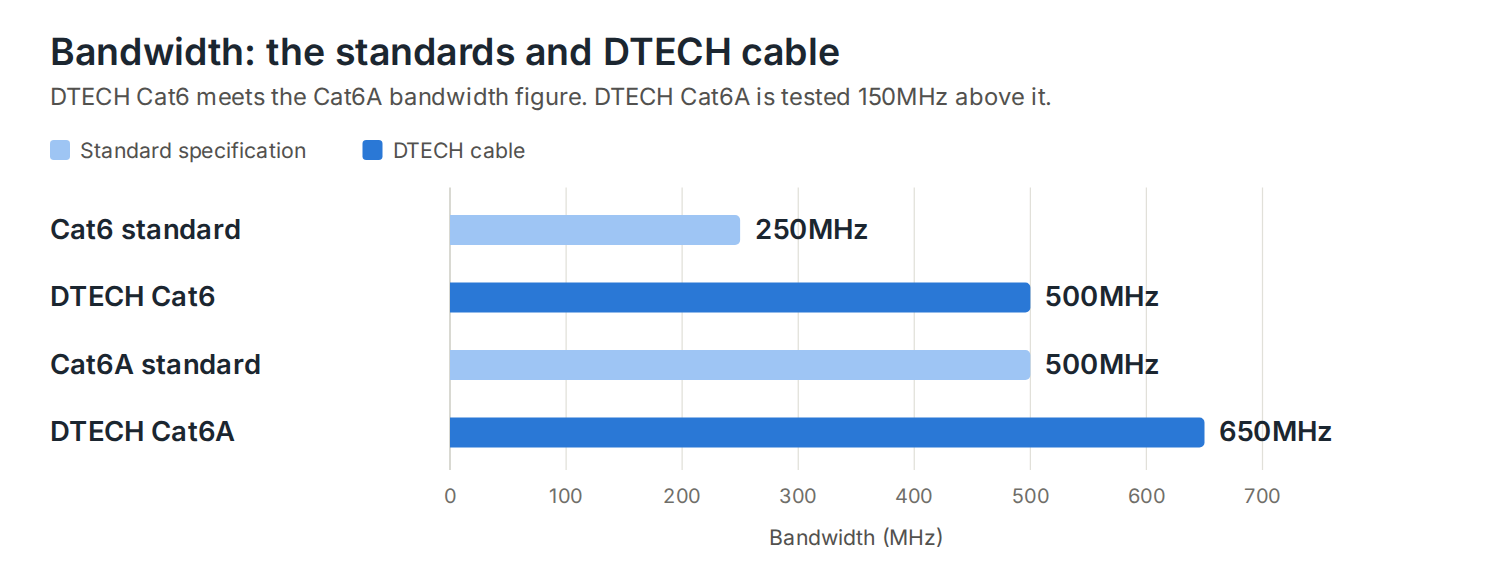

Standard Cat6 is specified to 250MHz. DTECH’s Cat6 is rated to 500MHz — the same bandwidth level as the Cat6A standard. On bandwidth alone, DTECH’s Cat6 already meets what Cat6A requires. For installations where bandwidth headroom is the primary concern, DTECH’s Cat6 at 500MHz covers that requirement without stepping up to Cat6A.

The reasons to specify DTECH’s Cat6A over DTECH’s Cat6 are therefore not about bandwidth — they are about what the Cat6A standard adds beyond bandwidth. Cat6A introduces mandatory alien crosstalk certification that guarantees 10GBase-T performance to the full 100-metre channel regardless of installation density. It is the minimum required specification for HDBaseT 3.0. It enables formal Cat6A system certification and carries DTECH’s 30-year trade partner warranty on a certified Cat6A channel. These are the meaningful distinctions — not bandwidth, where DTECH’s Cat6 already operates at Cat6A level.

DTECH’s Cat6A range is tested to 650MHz — 150MHz above the Cat6A standard specification of 500MHz. Where DTECH’s Cat6 matches Cat6A on bandwidth, DTECH’s Cat6A exceeds the standard on bandwidth and delivers the full alien crosstalk certification that Cat6A requires. The 650MHz tested figure reflects manufacturing headroom — a cable that performs 150MHz above its specification limit is built with significant margin above the standard it is certified to, supporting long-term reliability over the 30-year warranty period.

Cat6A vs Cat6 — what actually changes

When alien crosstalk matters in practice

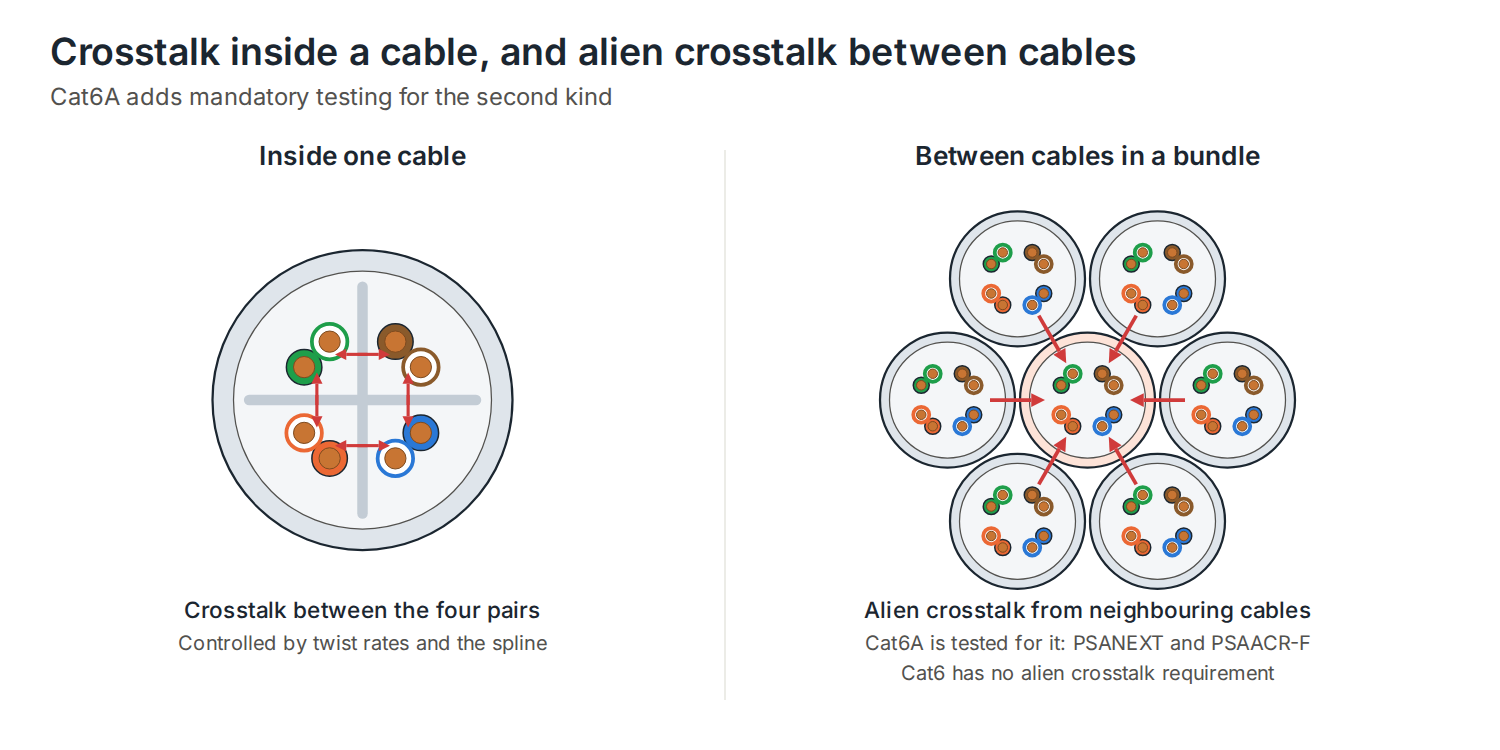

Alien crosstalk becomes a meaningful factor in any installation where multiple cables run in parallel over a significant length — which describes virtually every commercial structured cabling installation. A standard commercial floor plate might have 40 or 48 horizontal cables running through the same containment from the telecommunications room to the furthest outlets. In that bundle, every cable is a potential source of interference for every adjacent cable.

At Gigabit speeds, alien crosstalk is rarely the limiting factor — the frequencies involved are low enough that Cat6 manages adequately. At 10GBase-T, the story changes. The higher modulation frequencies used by 10G amplify alien crosstalk’s effect, and standard Cat6’s alien crosstalk performance is not specified or guaranteed at these frequencies. The result is that Cat6 at 10G in a dense bundle is an environment-dependent proposition — it may perform, but it cannot be guaranteed without post-installation testing, and performance may degrade as bundles become denser, cables age, or temperature rises under sustained PoE load.

Cat6A’s mandatory alien crosstalk specification resolves this. A certified Cat6A installation guarantees 10GBase-T performance to the full channel length regardless of bundle density — no post-installation alien crosstalk testing required, no uncertainty about whether the specific installation environment will support 10G reliably.

Shielding options — U/UTP, U/FTP and F/FTP

Cat6A is available in unshielded and shielded constructions. The choice between them depends on the installation environment and the approach to alien crosstalk management — both can meet Cat6A specification, but they achieve it differently and suit different installation types.

U/UTP — unshielded

Unshielded Cat6A manages alien crosstalk through precision cable geometry — tighter twist rates, more precise insulation, and a larger overall cable diameter that increases physical separation between pairs from adjacent cables in a bundle. This is the simplest installation — no grounding to manage, lighter and more flexible than shielded variants.

DTECH’s Cat6A U/UTP 650MHz white LSZH cable is the unshielded option — the lightest and most flexible Cat6A variant, suitable for standard commercial office, education, and retail installations where EMI is not a primary concern and grounding continuity is not required.

U/FTP — individually screened pairs

U/FTP construction adds an aluminium foil screen around each individual twisted pair. The per-pair screening provides targeted alien crosstalk and NEXT rejection at the pair level — the most direct approach to alien crosstalk suppression. The overall cable has no outer screen, so it remains relatively flexible and does not require grounding of an overall shield, though the individual foil screens must be correctly handled at termination.

DTECH’s Cat6A U/FTP 650MHz ice blue LSZH cable is the individually screened variant — the recommended specification for high-density AV and IT installations, HDBaseT 3.0, and any environment where per-pair screening provides the most reliable alien crosstalk rejection. The ice blue jacket provides clear identification in mixed cable installations. This cable carries HDBaseT Alliance recommended status.

F/FTP — individually screened pairs plus overall foil screen

F/FTP adds an overall aluminium foil screen around all four individually screened pairs. This provides the highest level of EMI protection — the outer foil rejects interference from external sources such as power cables, lighting dimmers, and motor drives, while the individual pair foils reject alien crosstalk from adjacent cables. The outer screen must be grounded correctly and continuously throughout the channel.

DTECH’s Cat6A F/FTP 650MHz blue LSZH cable is the fully shielded option — the correct specification for industrial environments, plant rooms, installations running alongside heavy electrical infrastructure, or any location where external EMI sources require the maximum available shielding. The blue jacket distinguishes it from the U/FTP ice blue and U/UTP white variants. This cable also carries HDBaseT Alliance recommended status.

The slimline Cat6A patch lead

Standard Cat6A patch leads have a larger outer diameter than Cat6 leads — typically 7–8mm OD versus 6mm for Cat6. In high-density patch panel environments — 48-port panels, top-of-rack switching, and data centre patch bays — the bulk of standard Cat6A patch leads can create cable management difficulties, restrict airflow, and make it harder to access individual ports without disturbing adjacent connections.

DTECH’s 28AWG Cat6A S/FTP slimline patch lead at 4.8mm OD is approximately 40% thinner than a standard Cat6A patch lead — significantly easier to route, manage, and access in high-density environments. The S/FTP construction provides individually foil-screened pairs plus an overall braided screen, maintaining full Cat6A shielding performance in the reduced diameter. The 650MHz tested specification is consistent with DTECH’s bulk cable range.

28AWG conductors have higher resistance than standard gauge, which generates more heat under sustained current. For short patch cord runs at the panel and switch end — where patch leads typically run 1–3 metres — 28AWG is perfectly adequate for all PoE classes. For longer patch cord runs or where sustained PoE++ at the upper current limits is a consideration, standard gauge patch leads provide better thermal headroom.

When to specify Cat6A over Cat6

For new commercial installations, Cat6A is the correct default specification. The cost difference at installation time is small relative to the total project cost and negligible relative to the cost of recabling later. A Cat6A installation supports 10GBase-T at the full channel length, HDBaseT 3.0, and Wi-Fi 6E multi-gigabit uplinks without qualification on density or environment.

The specific triggers for specifying Cat6A over DTECH Cat6 are: 10GBase-T at full 100-metre channel length with alien crosstalk certification required; HDBaseT 3.0 minimum specification; formal Cat6A system certification and 30-year Cat6A warranty; or high-density 10G deployments where alien crosstalk performance must be formally guaranteed rather than environment-dependent.

Where budget is constrained and the application does not require formal Cat6A certification, DTECH’s Cat6 at 500MHz provides bandwidth headroom equivalent to the Cat6A standard — making it a strong performer for installations where bandwidth is the primary concern. For the full Cat6A specification with alien crosstalk certification and formal Cat6A system guarantees, DTECH’s Cat6A at 650MHz is the correct answer.

View the full DTECH copper range: Bulk data cable  |  Copper patch leads

Frequently asked questions

Is Cat6A always shielded?

No — Cat6A is available in both unshielded (U/UTP) and shielded (U/FTP, F/FTP) constructions. Both can meet the Cat6A standard. Shielded Cat6A manages alien crosstalk through screening; unshielded Cat6A manages it through precision cable geometry and larger overall diameter. DTECH’s Cat6A range includes U/UTP, U/FTP, and F/FTP variants to cover the full range of installation requirements.

Does Cat6A need to be grounded?

Shielded Cat6A variants require the shield to be grounded correctly and continuously throughout the channel. An ungrounded or incorrectly grounded shield can introduce noise rather than reject it. U/FTP has individual pair foils that must be correctly handled at termination. F/FTP has an outer foil screen that additionally requires a ground path at the panel end. Unshielded Cat6A U/UTP requires no grounding — a practical advantage in installations where grounding continuity is difficult to achieve or maintain.

If DTECH Cat6 is 500MHz — the same as Cat6A bandwidth — why would I need Cat6A?

Bandwidth is one parameter but not the only one. Cat6A introduces mandatory alien crosstalk testing — PSANEXT and PSAACR-F — that Cat6 does not require. This is what certifies 10GBase-T performance to the full 100-metre channel regardless of installation density, qualifies the cable for HDBaseT 3.0, and enables formal Cat6A system certification. DTECH’s Cat6 at 500MHz is an excellent performer on bandwidth — but it is certified to Cat6, not Cat6A. For installations requiring Cat6A certification, alien crosstalk compliance, HDBaseT 3.0 suitability, or a guaranteed 10G to full channel length in dense bundles, DTECH’s Cat6A at 650MHz is the correct specification.

Can I mix Cat6A and Cat6 in the same installation?

Yes — Cat6A is backward compatible with Cat6 and Cat5e. The channel performs at the rating of the lowest-specified component. For a new Cat6A installation, specifying all components to Cat6A throughout — cable, keystone jacks, patch panels, and patch leads — is the correct approach to deliver a certified Cat6A channel.

What does 650MHz mean on DTECH’s Cat6A cable?

Cat6A is standardised to 500MHz. DTECH’s Cat6A cables are tested to 650MHz during manufacturing — 150MHz above the standard specification. This reflects manufacturing headroom: a cable that performs 150MHz above its certified specification is built with significant margin above the standard, supporting long-term reliability and underpinning DTECH’s 30-year trade partner warranty on qualifying Cat6A installations.

Is Cat6A suitable for HDBaseT?

Yes — Cat6A is the recommended specification for HDBaseT and the minimum required for HDBaseT 3.0 (4K/60 4:4:4). DTECH’s Cat6A U/FTP and F/FTP cables carry HDBaseT Alliance recommended status. For high-density AV installations with multiple adjacent HDBaseT channels, the U/FTP construction’s individual pair screening provides the alien crosstalk rejection needed for reliable performance across all channels simultaneously.

What is the difference between U/FTP and F/FTP?

Both have individually foil-screened pairs. F/FTP adds an outer foil screen around all four pairs — providing an additional layer of protection against external EMI sources such as power cables, motor drives, and lighting dimmers. U/FTP has no outer screen, making it lighter and slightly more flexible. F/FTP is the correct specification for high-EMI environments; U/FTP is the correct specification for high-density AV and data installations in standard EMI environments where per-pair alien crosstalk rejection is the primary requirement.

Summary

Cat6A is the current recommended specification for new commercial structured cabling — 500MHz standard, 23AWG, 10GBase-T to the full 100-metre channel with mandatory alien crosstalk certification. DTECH’s Cat6 at 500MHz already matches Cat6A’s bandwidth specification — for installations where bandwidth headroom is the primary requirement, it provides that in a Cat6 form factor. For the full Cat6A specification — alien crosstalk certified, 10G to 100m guaranteed in dense bundles, HDBaseT 3.0 qualified, formal Cat6A system certification — DTECH’s Cat6A at 650MHz exceeds the standard with significant manufacturing headroom. The range covers three construction types: U/UTP for standard environments, U/FTP for high-density AV and IT, and F/FTP for high-EMI environments. The 28AWG slimline S/FTP patch lead provides Cat6A performance in a 4.8mm OD for high-density patch environments.

If you need help specifying Cat6A cable for a commercial installation, get in touch with the DTECH team — we supply Cat6A cabling systems to installers and IT teams across the UK, Europe, and the Middle East.
